VoyagerVision: Investigating the Role of Multi-modal Information for Open-ended Learning Systems

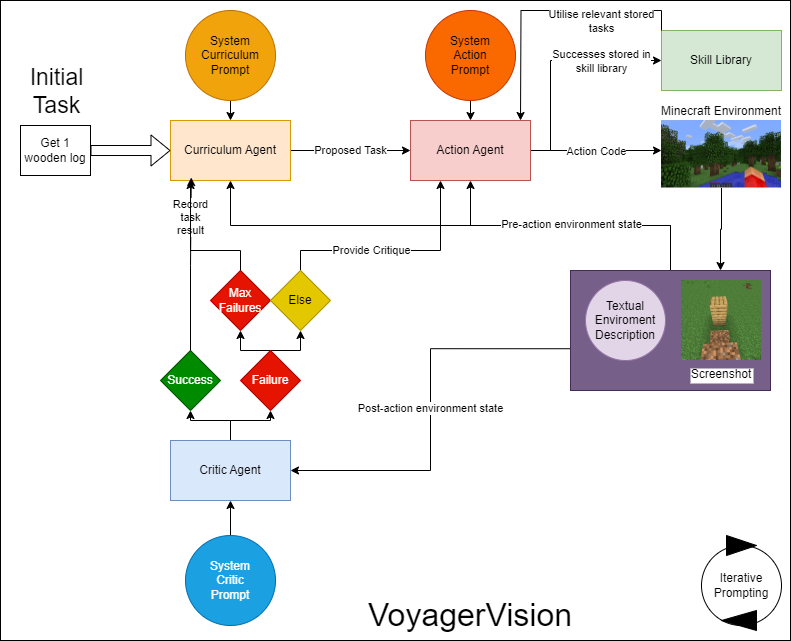

The system operates within the environment of Minecraft, a 3-dimensional world where the terrain and all structures are made out of ’blocks’, these blocks may be broken provided the player possesses the correct tools. On collection, these blocks may also be placed again, allowing the creation of structures and build- ings. Within Minecraft, one of the two primary objectives of a player/agent is to acquire resources to create better tools, which in turn, allows the collection of more resources and even better tools. This process is the focus of the orig- inal Voyager paper[13]. Another main focus is the creative process of creating structures with the blocks the player gains while exploring - this often includes practical structures such as a house or a nether portal (which allows further exploration in a different world), and purely creative pursuits such as decorative sculptures. As shown in Fig. 3, the agent has been provided with multimodal inputs, enabling the pursuit of these building-focused tasks which are key to the gameplay loop of Minecraft. The new prompts which have been used for VoyagerVision, as well as the originals can be found in Appendices C to E. The first curriculum task in the curriculum requires the agent to acquire 1 wooden log, which facilitates further building and resource gathering while being a straightforward first step. On any other iteration, the curriculum agent uses its system prompt, a screenshot of the agent’s current POV, a textual description of the environment, and the history of previous successes and failures to decide what task should be pursued next. The action agent uses this proposed task, the system prompt, and the same environment inputs to generate code for the agent to perform to solve the task, using the Mineflayer API [10]. At this point, the action agent may refer to functions already stored in the skill library which are helpful. The function generated by the action agent is then executed in the game environment. Following this, the critic agent verifies the success of the task. For resource gathering tasks, the textual environment information, such as nearby blocks and what is currently in the agent’s inventory, is likely to be sufficient. However, for building-based tasks, the agent’s POV is needed to verify if the task has been truly completed. If the task was successful, it is reported as such, the code is stored in the skill library, and the curriculum agent generates a new task. Otherwise, the agent provides a critique to the action agent, which uses this feedback to try generating the code again. If the agent fails the maximum number of times (set to 3 in the default Voyager implementation), the task is marked as failed, and this is added to the list of failed tasks. This information is then used to assist the curriculum agent in generating a new task which is more approachable for the agent.

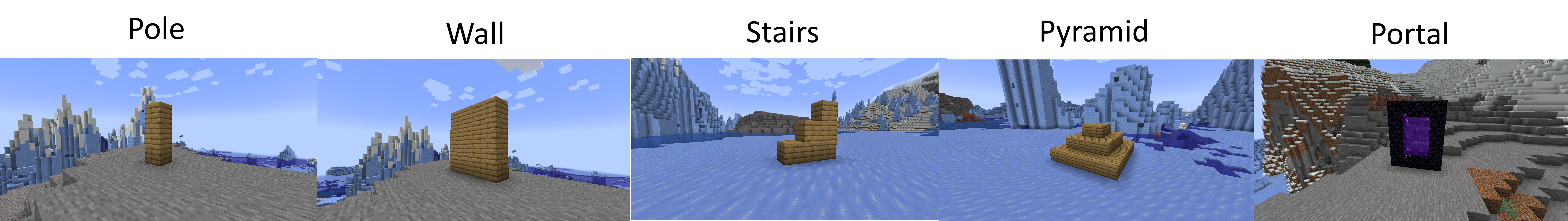

Below is an example image of each of the structures the agent was tasked with building as part of the unit tests. From left to right the structures get progressively more difficult to build. The agent being able to complete each of these tasks would demonstrate a strong ability to compose structures in a focused and isolated setting, a strong foundation for open-ended learning.

The prompts used to generate each task are outlined below:

• Pole Task Prompt
  Task: Create a wooden plank pole, 3 blocks high on the ground.
  Context: N/A
• Wall Task Prompt
  Task: Create a wooden wall 4 blocks high and 4 blocks long in a flat open space.
  Context: N/A
• Stairs Task Prompt
  Task: Create a wooden staircase 3 blocks high.
  Context: The staircase should be composed of 3 adjacent pillars, one 3 blocks high, one 2 blocks high and one 1 block high, use wooden planks.
• Pyramid Task Prompt
  Task: Create a three tier spruce plank pyramid.
  Context: Begin with a 6x6 platform on the ground. On top of this platform, centred on its middle 4x4 blocks, add a 4x4 platform. Finally, on top of this 4x4 platform in its middle 2x2 blocks, add a 2x2 platform.
• Portal Task Prompt
  Task: Create a nether portal.
  Context: The portal should be made of obsidian, the sides should be 5 blocks tall with the base 4 blocks wide. Once you have completed the structure, light the inside with your flint and steel to form a nether portal. Ensure no dirt scaffolding remains inside the portal or else it will not light correctly.
